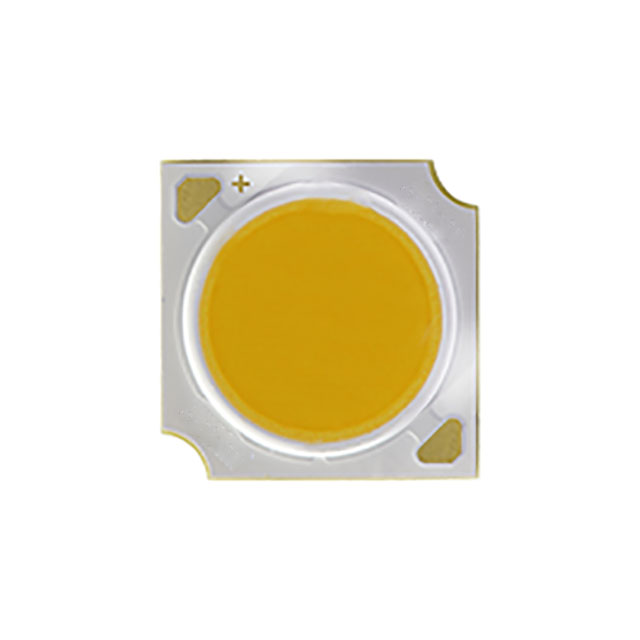

CMT1930-0000-00PN0U0A30G
LED COB XLAMP WARM WHT SQ 3000KManufacturer: Cree LED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMT1930 White, Warm Square
Additional Information
Series: XLamp® CMT1930RoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 34.4V |
| Height | 1.45mm |
| Current - Test | 800mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.08A |
| Lumens/Watt @ Current - Test | 135 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 14.50mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 3724lm (Typ) |
