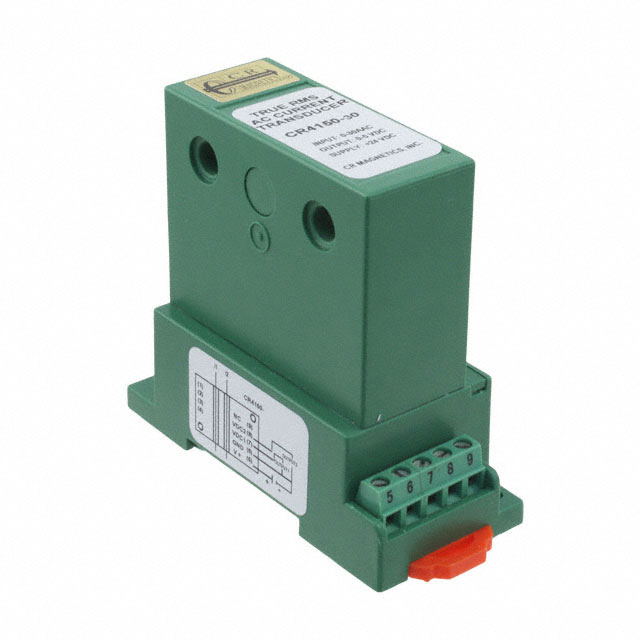

CR4150-30
SENSOR CURRENT XFMR 30A ACManufacturer: CR Magnetics Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 30A 2 Channel Transformer w/Conditioning Bidirectional Module, Dual Pass Through
Additional Information
Series: CR4100RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Dual Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | DIN Rail, Panel |
| Output | Ratiometric, 0V ~ 5V |
| Frequency | 20Hz ~ 5kHz |
| Accuracy | ±0.5% |
| Operating Temperature | 0°C ~ 60°C |
| Voltage - Supply | 24V |
| Response Time | 250ms |
| Sensor Type | Transformer w/Conditioning |
| Linearity | - |
| For Measuring | AC |
| Current - Supply (Max) | 75mA |
| Current - Sensing | 30A |
| Supplier Device Package | - |
| Number of Channels | 2 |
Request a Quote
