RR121-1A53-311
MAGNETIC SWITCH OMNIPOL SOT23-3Manufacturer: Coto Technology
Categories: Switches (Solid State)
Quality Control: Learn More

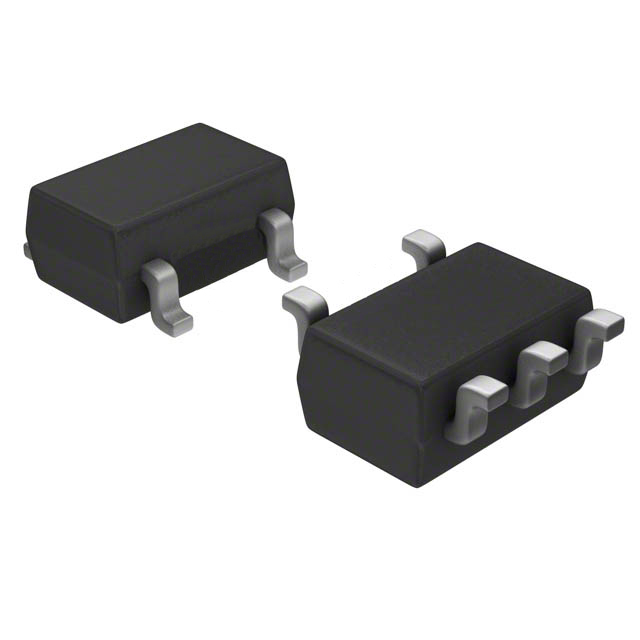

Coto Technology RedRock™ 121 RR121-1A53-311 is a digital omnipolar magnetic switch utilizing Tunneling Magnetoresistive (TMR) technology. This surface-mount device, packaged in a SOT-23-3 (TO-236-3, SC-59) configuration, offers detection capabilities for both north and south magnetic poles. It features a supply voltage range of 2.7V to 3.6V and a low supply current of 2.5µA (max). The RR121-1A53-311 exhibits a typical trip magnetic flux density of 0.9mT and a release flux density of 0.5mT, enabling precise switching points. The output is a digital signal, with a maximum output current of 10mA. This component is suitable for applications in consumer electronics, industrial automation, and medical devices where reliable magnetic sensing is required. The device is supplied on tape and reel (TR) for automated assembly and operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: RedRock™ 121RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Digital |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | Magnetic, TMR (Tunneling Magnetoresistive) |
| Sensing Range | 0.9mT Trip, 0.5mT Release |
| Current - Output (Max) | 10mA |
| Current - Supply (Max) | 2.5µA |
| Supplier Device Package | SOT-23-3 |
| Test Condition | 25°C |
