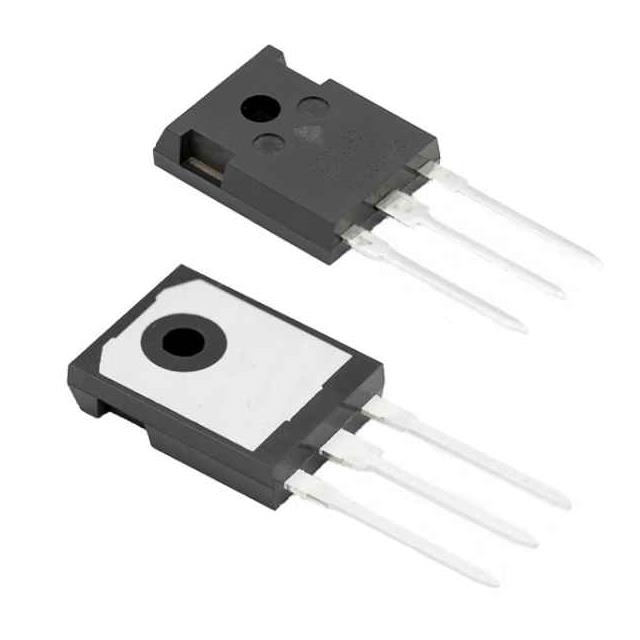

CC-CL-75-1023
SiC MOSFET 33A 1200V TO-247-3Manufacturer: CoolCAD
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 33A 135W Through Hole TO-247-3
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 33A |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 10A, 20V |
| FET Feature | - |
| Power Dissipation (Max) | 135W |
| Vgs(th) (Max) @ Id | 2.9V @ 10mA |
| Supplier Device Package | TO-247-3 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 20V |
| Vgs (Max) | +20V, -5V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 90 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 930 pF @ 1000 V |
| Qualification | - |
Request a Quote
Clients Also Buy
CC-C2-B15-0322
SiC Power MOSFET 1200V 12A

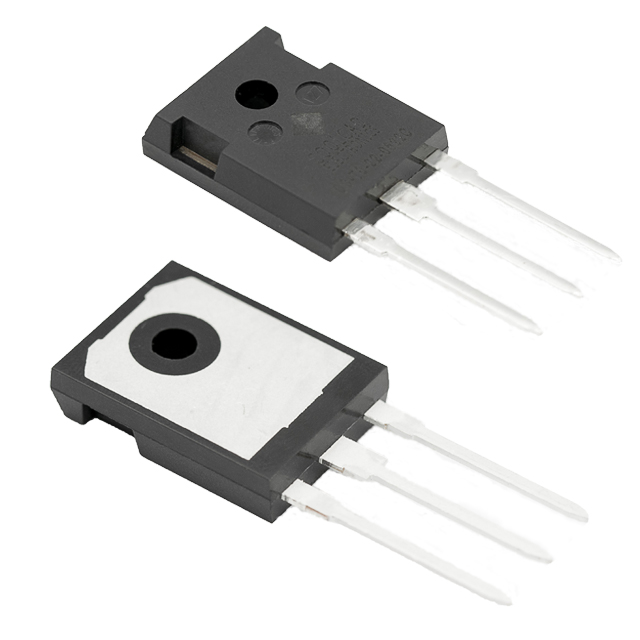

CC-CN-23-0123
