CZRZ6V8B-HF
DIODE ZENER 6.8V 100MW 0201Manufacturer: Comchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

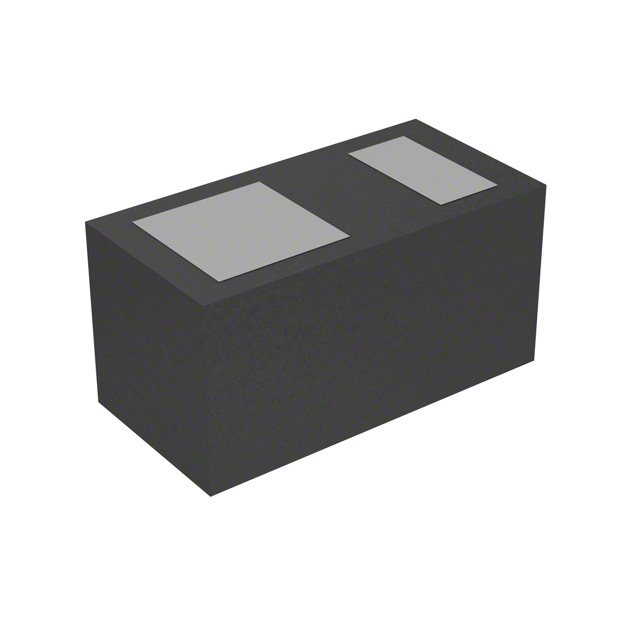

Comchip Technology CZRZ6V8B-HF is a 6.8V Zener diode with a power rating of 100mW. This surface mount component, housed in an 0201 (0603 Metric) package, offers a tight tolerance of ±4.93%. It exhibits a maximum impedance of 40 Ohms and a reverse leakage of 500 nA at 3.5V. The forward voltage (Vf) is 900mV at 10mA. Operating across a temperature range of -55°C to 125°C, this device is suitable for applications in consumer electronics and industrial control systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±4.93% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Zener (Nom) (Vz) | 6.8 V |
| Impedance (Max) (Zzt) | 40 Ohms |
| Supplier Device Package | 0201/DFN0603 |
| Power - Max | 100 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 3.5 V |
