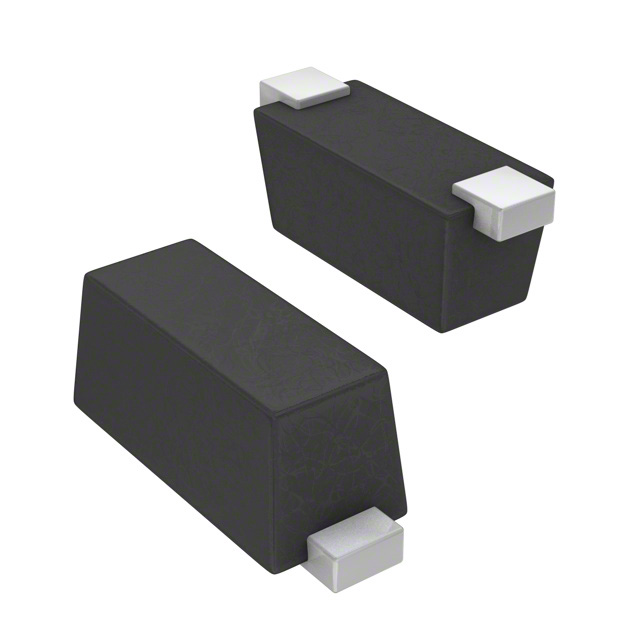

CZRQR5V6B-HF
DIODE ZENER 5.6V 125MW SOD923Manufacturer: Comchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Comchip Technology CZRQR5V6B-HF is a Zener diode with a nominal breakdown voltage of 5.6V and a power dissipation rating of 125mW. This device features a tight tolerance of ±2% and a low reverse leakage current of 2 µA at 3V. Its impedance is a maximum of 25 Ohms. The CZRQR5V6B-HF is housed in a compact SOD-923 surface-mount package, suitable for space-constrained applications. The forward voltage drop is specified at a maximum of 900mV at 10mA. This component is commonly employed in voltage regulation and protection circuits across various industries, including consumer electronics and industrial automation. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±2% |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-923 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Impedance (Max) (Zzt) | 25 Ohms |
| Supplier Device Package | SOD-923 |
| Power - Max | 125 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 3 V |
