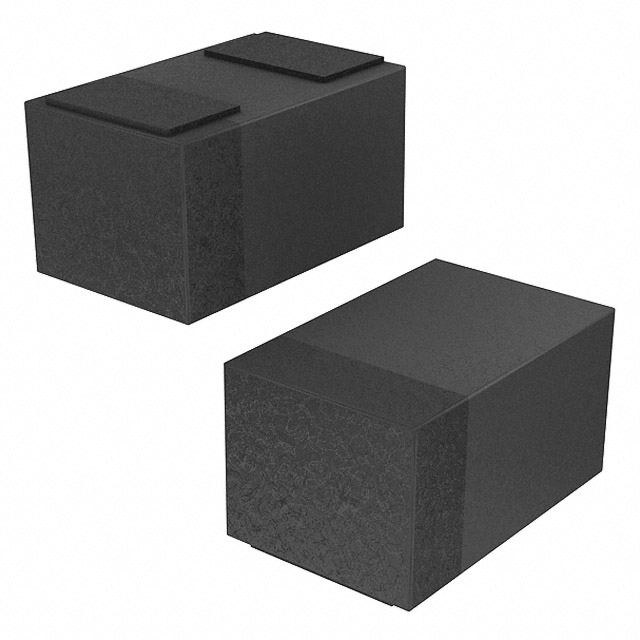

CZRQR52C2-HF
DIODE ZENER 2V 125MW 0402Manufacturer: Comchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Comchip Technology CZRQR52C2-HF is a 2V Zener diode with a power rating of 125 mW. This component features a ±5% voltage tolerance and a reverse leakage of 100 µA at 1V. Its typical impedance (Zzt) is 100 Ohms. Designed for surface mount applications, it is supplied in the compact 0402 (1006 Metric) package, delivered on tape and reel. The forward voltage (Vf) is 900 mV at 10 mA. Operating across a temperature range of -55°C to 125°C, this diode is suitable for voltage regulation and protection circuits in various electronic systems, including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Zener (Nom) (Vz) | 2 V |
| Impedance (Max) (Zzt) | 100 Ohms |
| Supplier Device Package | 0402 |
| Power - Max | 125 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 100 µA @ 1 V |
