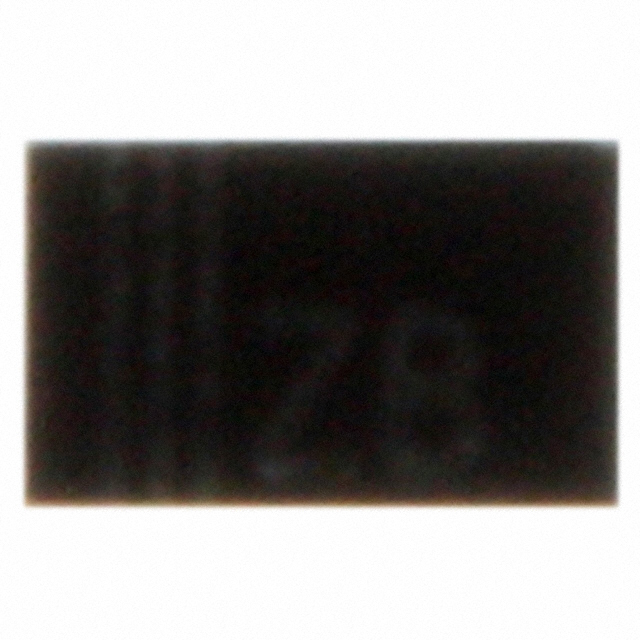

CZRER52C5V6
DIODE ZENER 5.6V 150MW 0503Manufacturer: Comchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Comchip Technology CZRER52C5V6 is a surface mount Zener diode with a nominal breakdown voltage (Vz) of 5.6V and a power rating of 150mW. This component features a tight tolerance of ±5% and a maximum Zener impedance (Zzt) of 40 Ohms. The forward voltage (Vf) is specified at a maximum of 900mV at 10mA, and reverse leakage current is 100µA at 1V. Supplied in a compact 0503 (1308 Metric) package, it is delivered on Tape & Reel (TR). The operating temperature range is from -55°C to 125°C. This device is commonly utilized in voltage regulation, transient suppression, and voltage referencing applications across various industries including telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0503 (1308 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Impedance (Max) (Zzt) | 40 Ohms |
| Supplier Device Package | 0503 (1308 Metric) |
| Power - Max | 150 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 100 µA @ 1 V |
