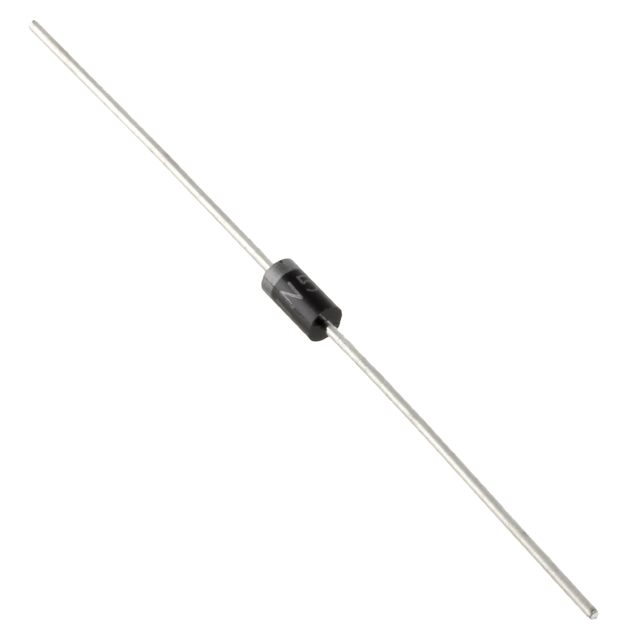

UF4002-G
DIODE GEN PURP 100V 1A DO41Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Diode 100 V 1A Through Hole DO-41
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
Request a Quote
Clients Also Buy

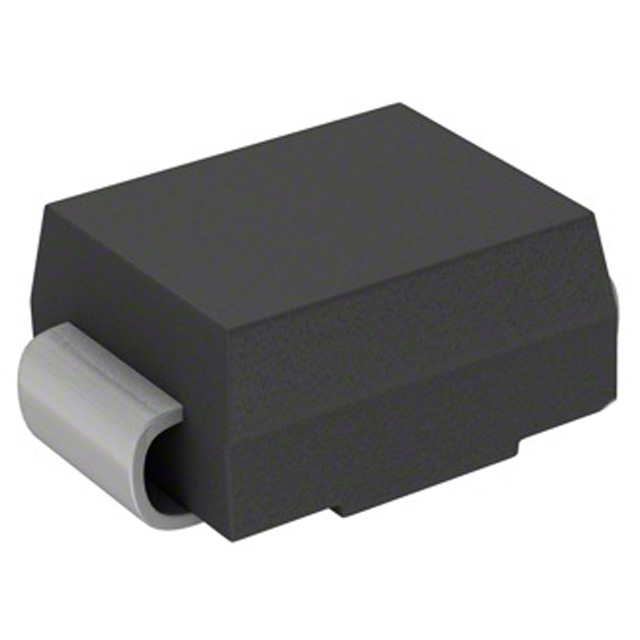

CDBA5150-G
DIODE SCHOTTKY 150V 5A DO214AC

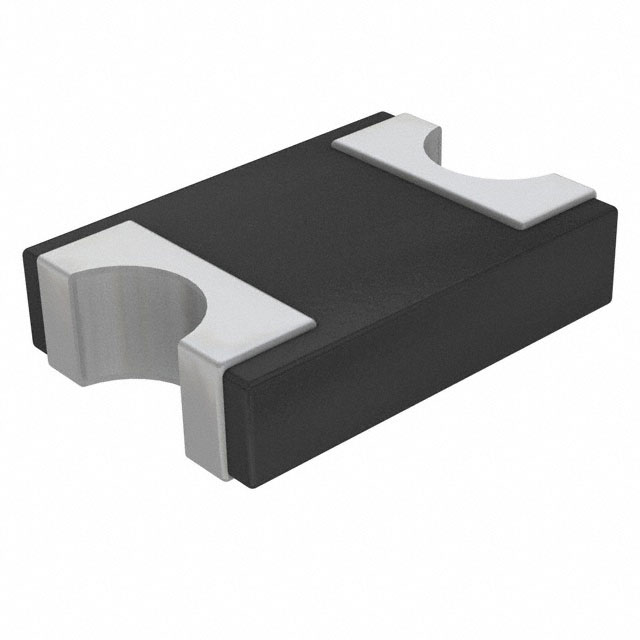

ACDBAT340-HF
