CSFM103-G
DIODE GP 200V 1A MINI SMA/SOD123Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology's CSFM103-G is a fast recovery general-purpose diode designed for surface mount applications. This component features a maximum DC reverse voltage of 200 V and an average rectified forward current capability of 1 A. Its forward voltage drop is specified at a maximum of 950 mV at 1 A. The reverse leakage current is a low 5 µA at the maximum reverse voltage of 200 V. With a reverse recovery time (trr) of 35 ns, it is classified as a fast recovery diode. The junction operating temperature range is -55°C to 150°C. This device is supplied in a SOD-123T package, also known as Mini SMA/SOD-123, and is available on tape and reel. Applications include power supplies, switching circuits, and general rectification in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

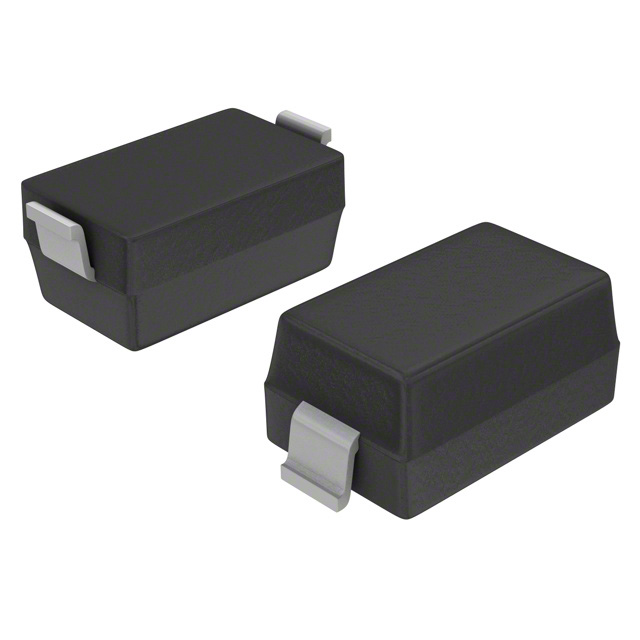

| Package / Case | SOD-123T |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | Mini SMA/SOD-123 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
