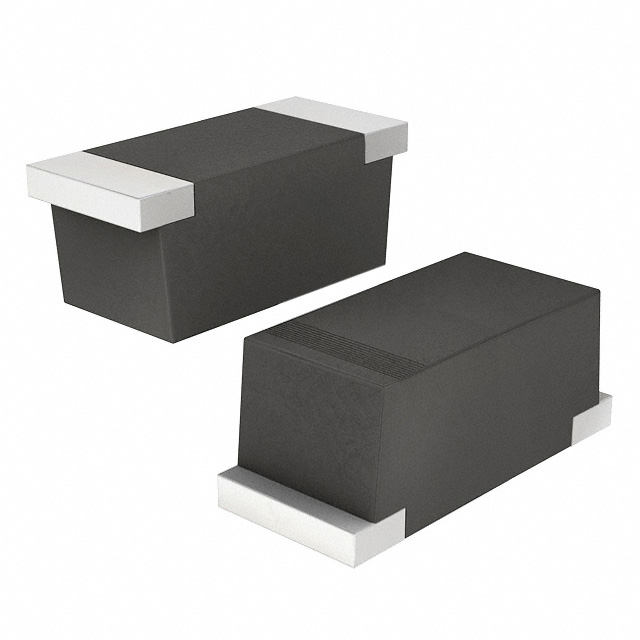

CGRM4001-G
DIODE GP 50V 1A MINI SMA/SOD123Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
The Comchip Technology CGRM4001-G is a general-purpose diode designed for surface-mount applications. This component offers a reverse voltage rating of 50V and a forward current capability of 1A. Featuring a low forward voltage drop of 1.1V at 1A, it also exhibits a minimal reverse leakage current of 5 µA at 50V. Its capacitance at 4V and 1MHz is rated at 15pF. The CGRM4001-G is housed in a Mini SMA/SOD-123 package, specifically the SOD-123T variant, and is supplied on tape and reel for automated assembly. With a standard recovery time exceeding 500ns, this diode is suitable for general rectification in various electronic systems, including power supplies and signal processing. The operating junction temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123T |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | Mini SMA/SOD-123 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
