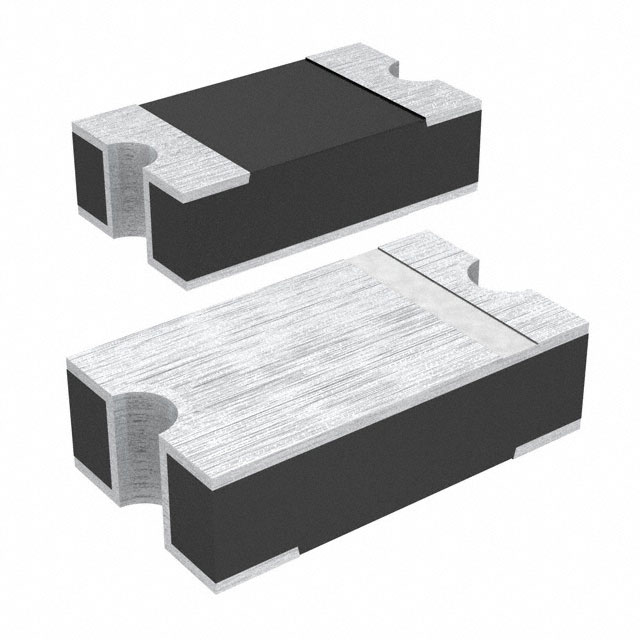

CGRBT205-HF
DIODE GEN PURP 1KV 2A Z2PAKManufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
The Comchip Technology CGRBT205-HF is a general-purpose rectifier diode with a 1000V reverse voltage (Vr) rating and a 2A average rectified forward current (Io). This component features a standard recovery time exceeding 500ns for currents over 200mA. The forward voltage drop (Vf) is a maximum of 1V at 2A. With a low reverse leakage current of 5 µA at its maximum Vr, this diode is suitable for applications requiring efficient rectification. The CGRBT205-HF is housed in a Z2PAK surface mount package and operates across a wide junction temperature range of -65°C to 175°C. Its capacitance is rated at 14pF at 4V and 1MHz. This device is commonly utilized in power supply circuits, industrial controls, and consumer electronics. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 14pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | Z2PAK |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
