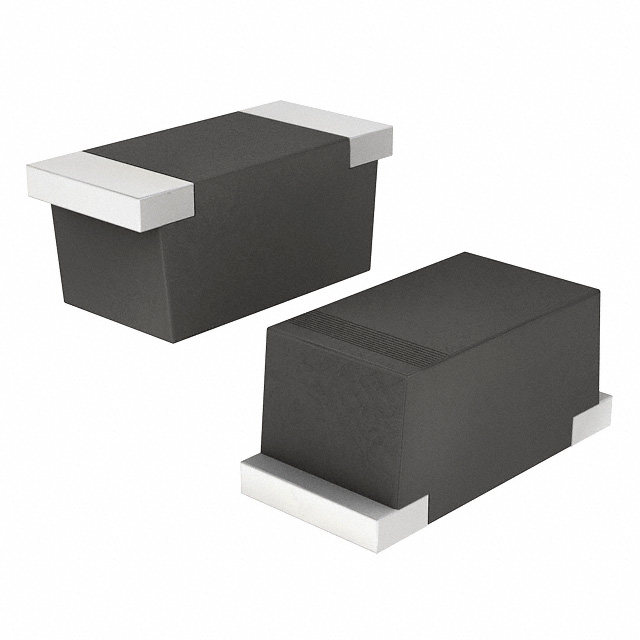

CFRM103-G
DIODE GP 200V 1A MINI SMA/SOD123Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology CFRM103-G is a general-purpose, fast recovery rectifier diode rated for 200V reverse voltage and 1A average rectified current. This component features a low forward voltage of 1.3V maximum at 1A forward current and a reverse leakage current of 1 µA at 200V. Designed for surface mount applications, it is supplied in the Mini SMA/SOD-123 package, specifically the SOD-123T variant, on tape and reel. The operating junction temperature range is -55°C to 150°C. Its fast recovery time of 150 ns makes it suitable for power supply, automotive, and industrial control applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123T |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | Mini SMA/SOD-123 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
