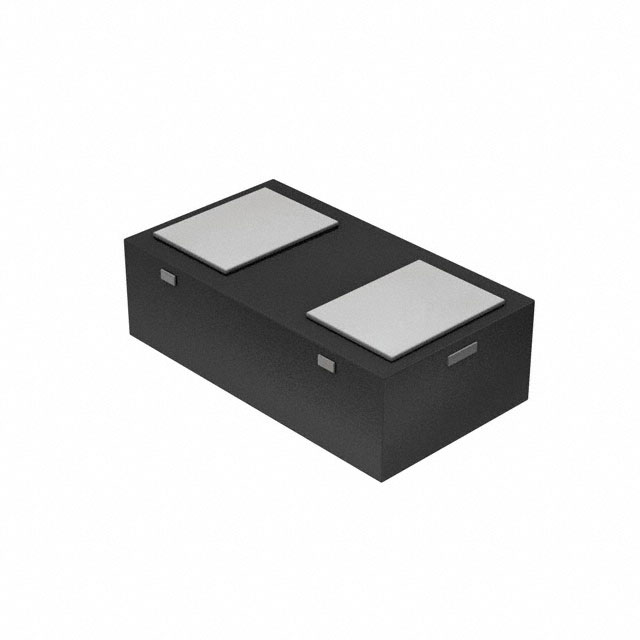

CDSQC4148S-HF
DIODE GEN PURP 100V 150MA 0402CManufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology's CDSQC4148S-HF is a general-purpose diode designed for surface-mount applications. This component features a 100V reverse voltage rating and a 150mA average rectified forward current capacity. Its small signal speed is rated for Io up to 200mA, and it exhibits a fast reverse recovery time of 4ns. The forward voltage drop is a maximum of 1V at 100mA, with a reverse leakage current of 2.5 µA at 75V. The diode is housed in a compact 0402C/SOD-923F package, suitable for automated assembly and space-constrained designs. Operating temperature ranges from -40°C to 150°C Junction. This device finds utility in various electronic systems, including consumer electronics and telecommunications equipment. It is supplied on tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 3pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | 0402C/SOD-923F |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V |
