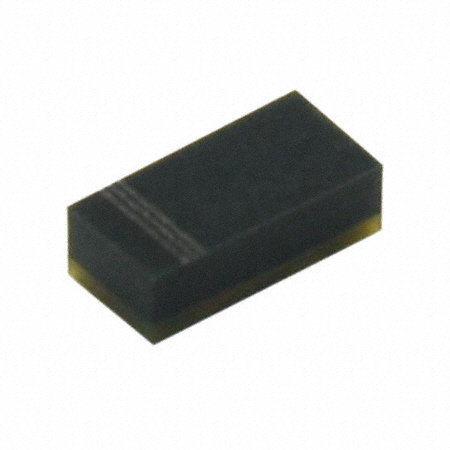

CDSF4448-HF
DIODE GEN PURP 80V 125MA 1005Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology's CDSF4448-HF is a general-purpose diode with a maximum reverse voltage of 80V and an average rectified current of 125mA. This surface mount component, packaged in a 1005/SOD-323F, offers a forward voltage of 1V at 100mA and a reverse leakage of 100 nA at 80V. Its capacitance is 9pF at 500mV and 1MHz, with a reverse recovery time of 9 ns. This diode operates across a junction temperature range of -40°C to 125°C and is supplied on tape and reel. It is suitable for applications requiring small signal rectification and switching, commonly found in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1005 (2512 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 9 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 9pF @ 500mV, 1MHz |
| Current - Average Rectified (Io) | 125mA |
| Supplier Device Package | 1005/SOD-323F |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V |
