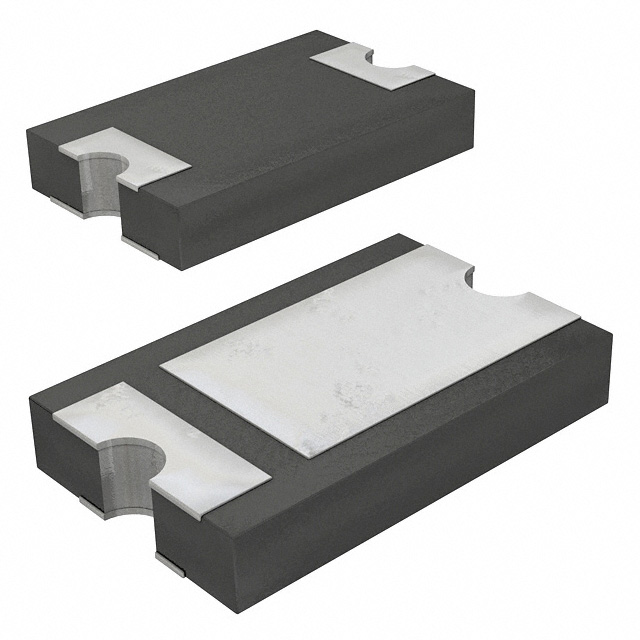

CDBZ5T30100-HF
DIODE SCHOTTKY 100V 30A SMCManufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology CDBZ5T30100-HF is a 100V, 30A Schottky diode in an SMC (Z5-T) surface mount package. This component is engineered for high-efficiency rectification with a low forward voltage drop of 850mV at 30A. Its reverse leakage current is rated at 50 µA at 100V. The CDBZ5T30100-HF operates across a junction temperature range of -55°C to 150°C and is supplied in Tape & Reel packaging. This device is suitable for applications requiring robust power handling and fast switching characteristics, commonly found in power supplies, voltage clamping, and reverse polarity protection circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Z5-T |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | SMC (Z5-T) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 30 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V |
