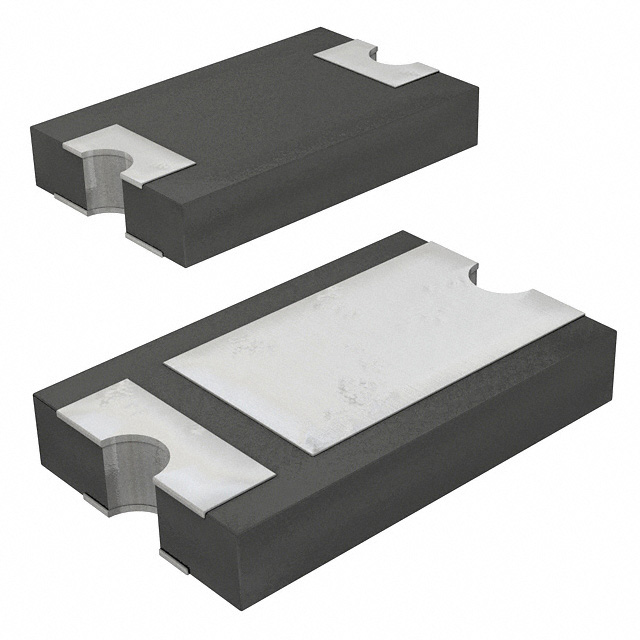

CDBZ5T1045-HF
DIODE SCHOTTKY 45V 10A SMCManufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology CDBZ5T1045-HF is a Schottky diode with a 45V reverse voltage rating and an average rectified current capacity of 10A. This component features a low forward voltage drop of 550mV at 10A, contributing to power efficiency. The reverse leakage current is specified at 100 µA at 45V. Packaged in an SMC (Z5-T) case for surface mounting, the CDBZ5T1045-HF is designed for operation across a wide temperature range of -55°C to 150°C. This diode is suitable for applications requiring fast switching speeds, typically found in power supply rectification, reverse polarity protection, and voltage clamping circuits across various industrial and consumer electronics sectors. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Z5-T |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | SMC (Z5-T) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V |
