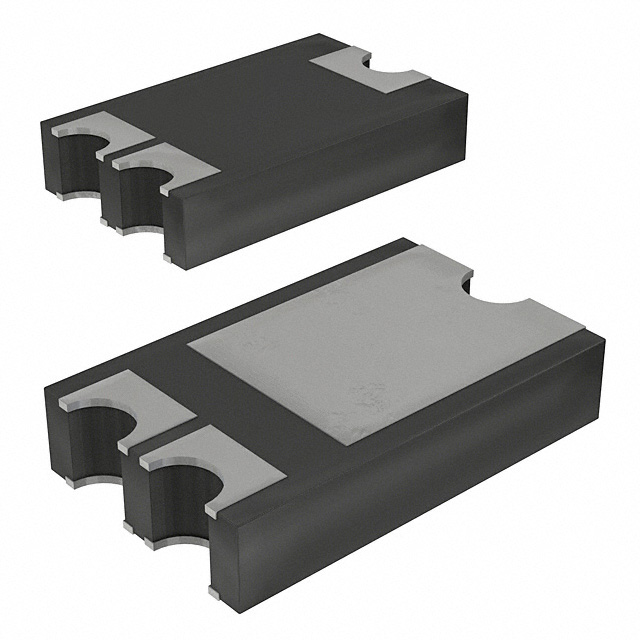

CDBZ31060-HF
DIODE SCHOTTKY 60V 10A TO277Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology CDBZ31060-HF is a 60V, 10A Schottky diode in a TO-277 (Z3) surface mount package, delivered on tape and reel. This component offers a maximum forward voltage of 750mV at 10A and a reverse leakage of 100 µA at 60V. Operating across a junction temperature range of -55°C to 150°C, it is suitable for applications requiring efficient rectification and low forward voltage drop. Its robust construction and performance characteristics make it a valuable component in power supply designs, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-277 (Z3) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 60 V |
