CDBZ310200-HF
DIODE SCHOTTKY 200V 10A TO277Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More

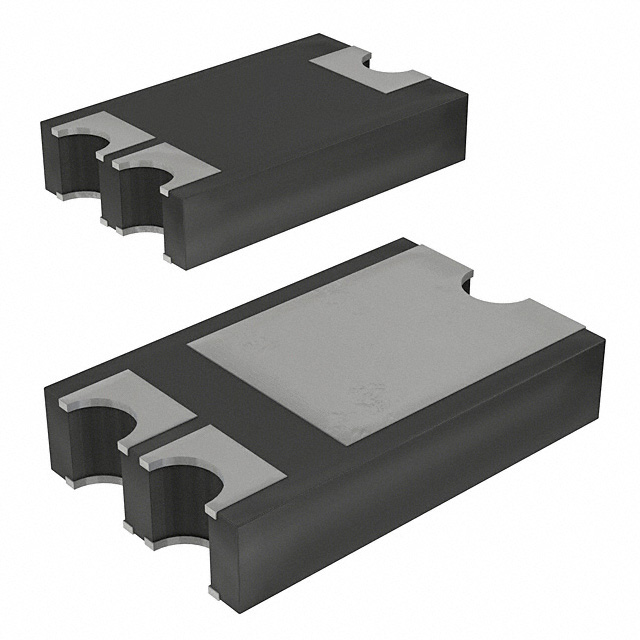

Comchip Technology CDBZ310200-HF is a 200V, 10A Schottky diode in a TO-277 (Z3) surface mount package. This component offers a forward voltage (Vf) of 900mV at 10A and a reverse leakage current of 100 µA at 200V. The operating junction temperature range is -55°C to 150°C. Packaged in Tape & Reel (TR), this diode is suitable for applications requiring efficient rectification and high current handling, commonly found in power supply units and industrial automation systems. Its Schottky technology ensures fast switching speeds.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-277 (Z3) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 200 V |
