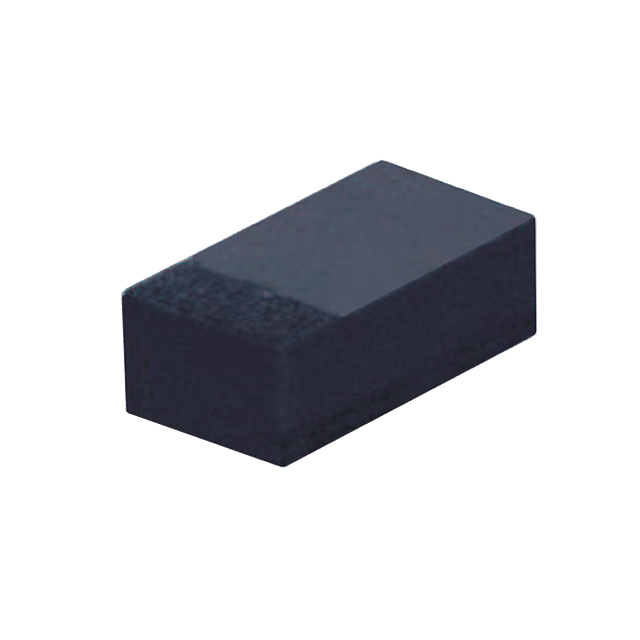

CDBURT0230LL-HF
DIODE SCHOTTKY 20V 200MA 0603Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology CDBURT0230LL-HF is a Schottky diode designed for surface mount applications. This component features a maximum DC reverse voltage of 20 V and an average rectified current capability of 200 mA. The forward voltage drop is specified at a maximum of 390 mV at 200 mA. Its low forward voltage and fast switching characteristics make it suitable for various signal processing and power management applications. The diode exhibits a reverse leakage current of 30 µA at 10 V and a capacitance of 30 pF at 1 V and 1 MHz. Packaged in a compact 0603/SOD-523F (SC-79) case, it is supplied on tape and reel. This device finds utility in consumer electronics, telecommunications, and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523F |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 30pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | 0603/SOD-523F |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 390 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 30 µA @ 10 V |
