CDBP0130R-G
DIODE SCHOTTKY 30V 100MA SOD723Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More

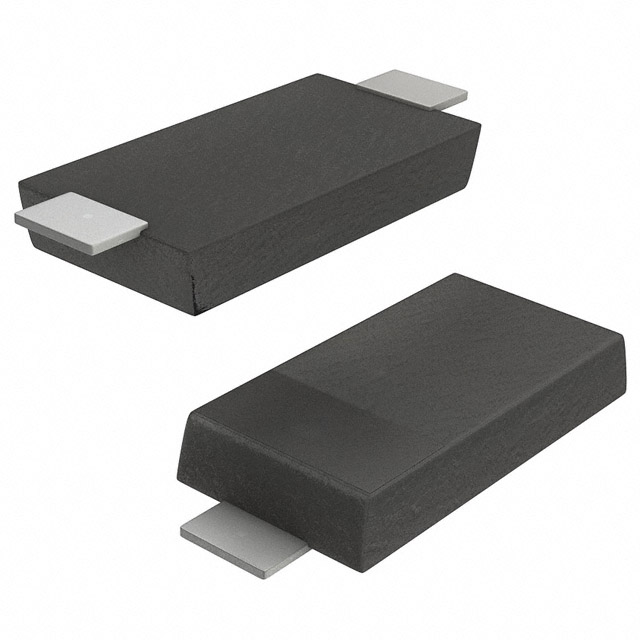

Comchip Technology CDBP0130R-G is a Schottky diode with a 30V reverse voltage rating and a 100mA average rectified current capability. This surface mount component, housed in a compact SOD-723 package, offers a low forward voltage of 450mV at 10mA and a reverse leakage of 500 nA at 10V. Its small signal speed is suitable for applications requiring less than 200mA forward current. The CDBP0130R-G is commonly employed in power management, signal switching, and battery charging circuits within the consumer electronics and industrial automation sectors. The component is supplied on a Tape & Reel (TR) for efficient automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-723 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | SOD-723 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 10 V |
