CDBJSC3650-G
DIODE SIL CARBIDE 650V 3A TO220FManufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More

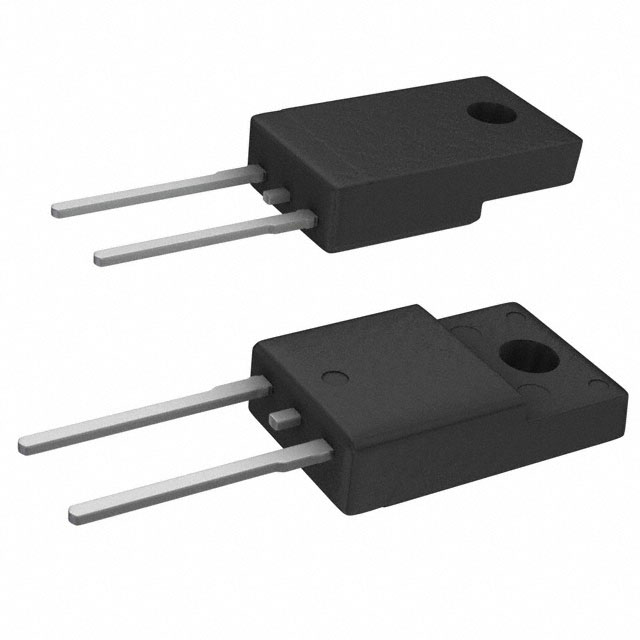

Diode 650 V 3A Through Hole TO-220F
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 190pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | TO-220F |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 3 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 650 V |
Request a Quote
