CDBER70
DIODE SCHOTTKY 70V 70MA 0503Manufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More

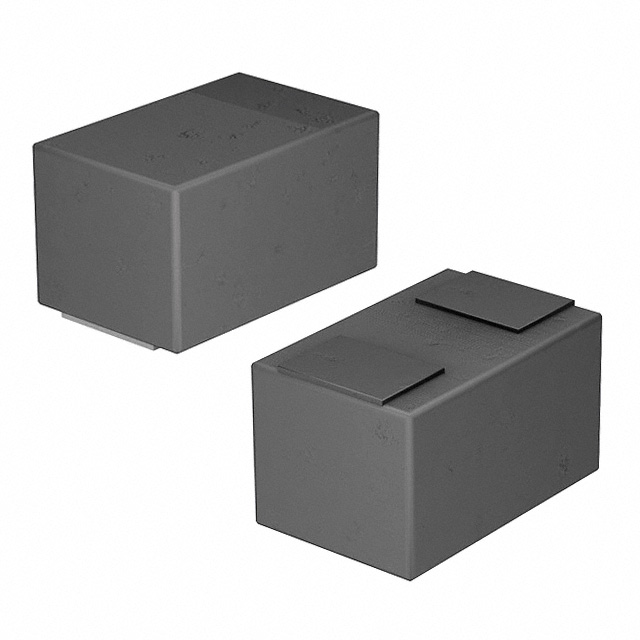

Comchip Technology CDBER70 is a Schottky barrier diode designed for surface mount applications. This component offers a 70V reverse voltage (Vr) and an average rectified current (Io) of 70mA. Featuring a low forward voltage (Vf) of 1V at 15mA and a typical reverse leakage current of 100 nA at 50V, the CDBER70 exhibits a reverse recovery time (trr) of 5ns. Its small signal speed is suitable for applications requiring less than 200mA quiescent current. The device is housed in a compact 0503 (1308 Metric) package, also known as SOD-723F, and is supplied on tape and reel. This diode is utilized in various electronic equipment across industries including consumer electronics and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0503 (1308 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 70mA |
| Supplier Device Package | 0503/SOD-723F |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
