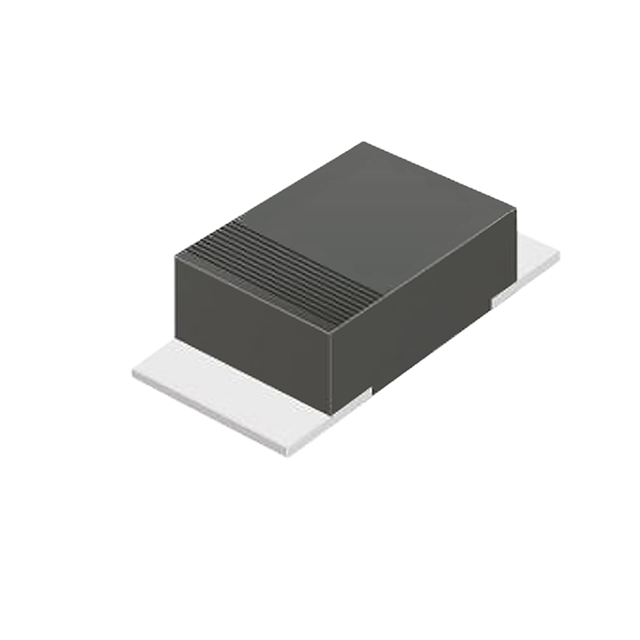

ACGRKM4005-HF
DIODE GP 600V 1A KM/SOD123FManufacturer: Comchip Technology
Categories: Single Diodes
Quality Control: Learn More
Comchip Technology ACGRKM4005-HF is a general-purpose diode with a 600V reverse voltage rating and 1A average rectified current. This surface mount component, packaged in SOD-123F, features a standard recovery speed exceeding 500ns. Its forward voltage drop is a maximum of 1V at 1A. The diode exhibits a reverse leakage current of 5 µA at 600V and has a junction capacitance of 15pF at 4V and 1MHz. Qualified to AEC-Q101 standards and designated for automotive applications, it operates within a temperature range of -55°C to 150°C. The ACGRKM4005-HF is suitable for high-voltage rectification and switching applications across various automotive electronics and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123T |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | KM/SOD-123F |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Qualification | AEC-Q101 |
