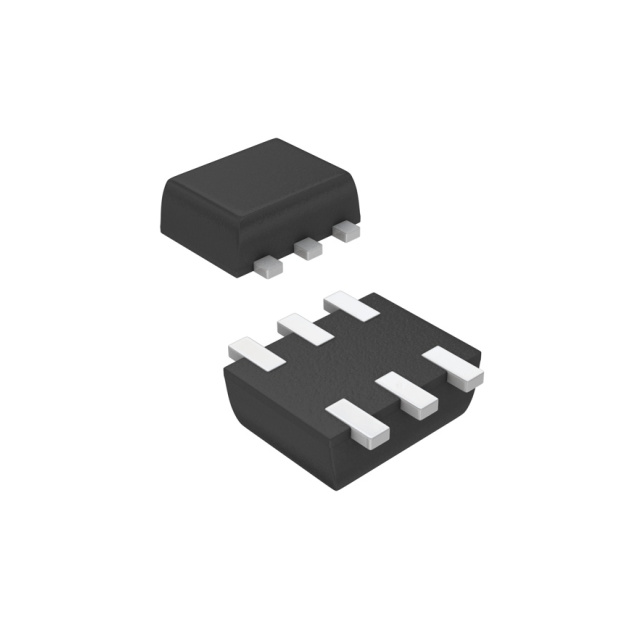

CDSH6-01100-HF
DIODE ARRAY GP 100V 100MA SOT563Manufacturer: Comchip Technology
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 2 Pair Series Connection 100 V 100mA Surface Mount SOT-563, SOT-666
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Diode Configuration | 2 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Supplier Device Package | SOT-563 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
Request a Quote
