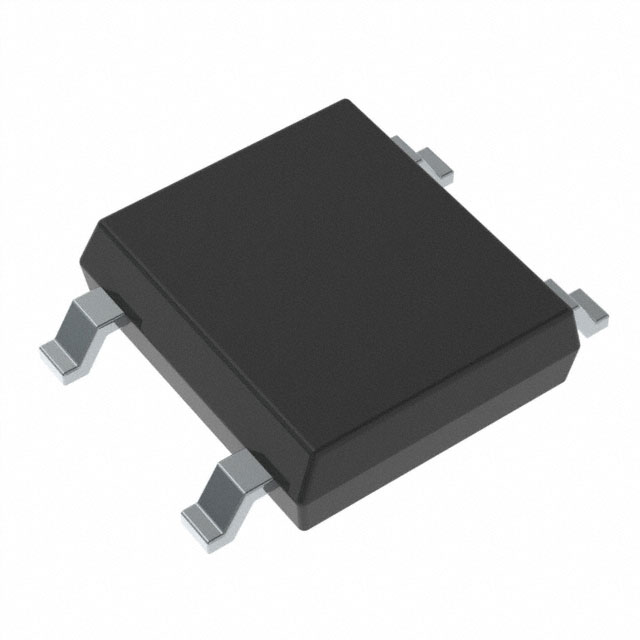

TB8S-G
BRIDGE RECT 1P 800V 800MA 4TBSManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
The Comchip Technology TB8S-G is a single-phase bridge rectifier designed for robust performance in demanding applications. Featuring a maximum reverse voltage of 800 V and an average rectified current (Io) of 800 mA, this component is suitable for power supply rectification and general-purpose AC-to-DC conversion. Its surface-mount TBS package (4-SMD, Gull Wing) ensures efficient thermal management and ease of integration onto printed circuit boards. The device exhibits a typical forward voltage (Vf) of 950 mV at 400 mA and a low reverse leakage current of 10 µA at 800 V. Operating across a wide temperature range of -55°C to 150°C (TJ), the TB8S-G is utilized in various industries including consumer electronics, telecommunications, and industrial automation. This Comchip Technology bridge rectifier is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | TBS |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 800 mA |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 400 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
