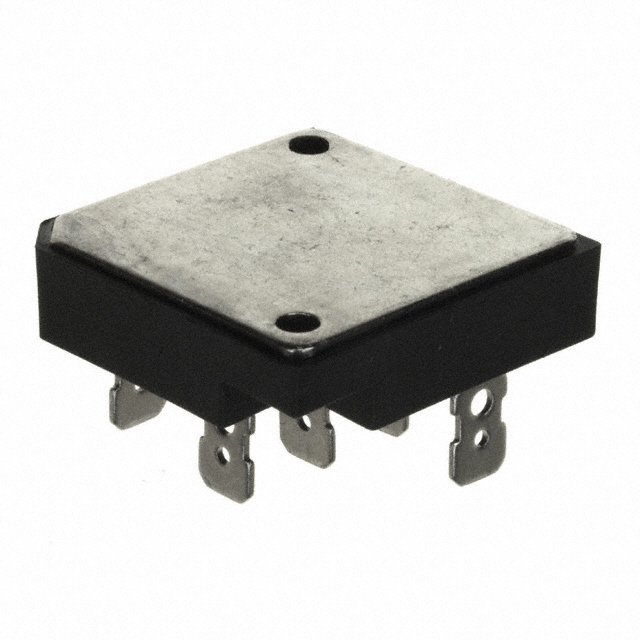

SC50VB80-G
BRIDGE RECT 3PHASE 800V 50A SCVBManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology SC50VB80-G is a three-phase bridge rectifier designed for robust power applications. This component features a standard recovery technology, offering a maximum repetitive peak reverse voltage of 800V and an average rectified forward current of 50A. The forward voltage drop is specified at 1.05V maximum at 12.5A, with a low reverse leakage current of 10 µA at 800V.
Engineered for reliable performance in demanding environments, it operates within a temperature range of -55°C to 150°C (TJ). The SCVB package, a 5-square configuration, is designed for chassis mounting, facilitating efficient heat dissipation. This bridge rectifier is commonly utilized in industrial power supplies, motor control systems, and welding equipment. Supplied in trays, the SC50VB80-G adheres to rigorous quality standards for high-power rectification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-Square, SCVB |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | SCVB |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
