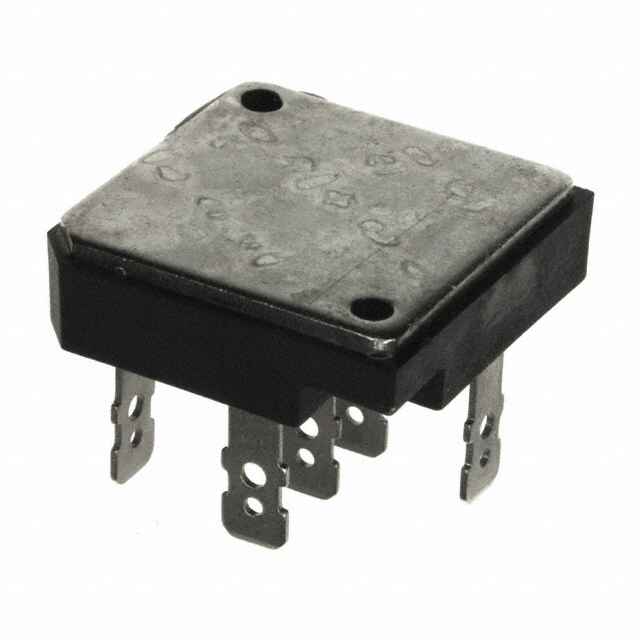

SC50VB160-G
BRIDGE RECT 3P 1.6KV 50A SCVBManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology SC50VB160-G is a three-phase standard bridge rectifier designed for robust power applications. This component features a maximum repetitive peak reverse voltage of 1.6 kV and a maximum average rectified forward current of 50 A. The forward voltage drop at 12.5 A is specified at 1.1 V. Reverse leakage current is a maximum of 100 µA at 1600 V. Engineered for reliable operation, it offers an operating temperature range from -55°C to 150°C. The SC50VB160-G utilizes a 5-square SCVB package for chassis mounting, ensuring efficient thermal management. This component is suitable for use in industrial power supplies, motor control, and high-voltage power conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-Square, SCVB |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | SCVB |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1600 V |
