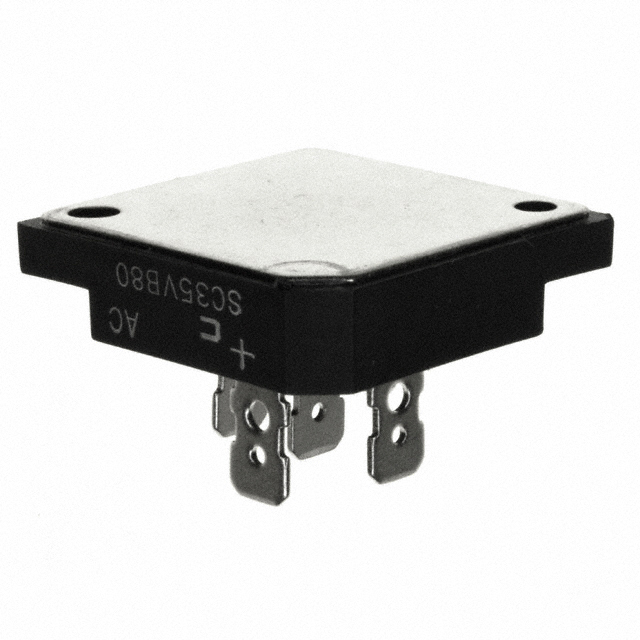

SC35VB80-G
BRIDGE RECT 3PHASE 800V 35A SCVBManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology SC35VB80-G is a three-phase bridge rectifier designed for robust power applications. This standard technology component features a maximum reverse voltage of 800 V and an average rectified current handling capability of 35 A. The forward voltage drop is specified at 1.05 V maximum at 12.5 A, with a low reverse leakage of 10 µA at 800 V.
Engineered for reliable performance in demanding environments, the SC35VB80-G is housed in a 5-square SCVB package suitable for chassis mounting. Its operating temperature range extends from -55°C to 150°C (TJ). This bridge rectifier is commonly utilized in power supplies, industrial motor control, and renewable energy systems where efficient three-phase rectification is critical. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-Square, SCVB |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | SCVB |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
