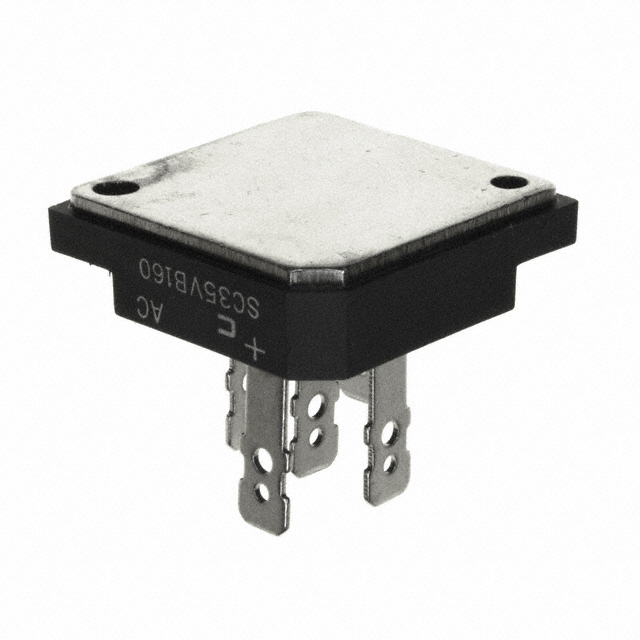

SC35VB160-G
BRIDGE RECT 3P 1.6KV 35A SCVBManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology SC35VB160-G is a three-phase bridge rectifier designed for robust power applications. This standard technology component offers an average rectified forward current (Io) of 35 A and a peak reverse voltage (Vrrm) of 1.6 kV. Featuring a low forward voltage drop of 1.1 V at 12.5 A, it minimizes power loss. The SCVB package facilitates efficient chassis mounting for thermal management. Reverse leakage current is rated at 100 µA at 1600 V. Operating across a wide temperature range from -55°C to 150°C (TJ), this device is suitable for industrial power supplies, motor control, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-Square, SCVB |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | SCVB |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1600 V |
