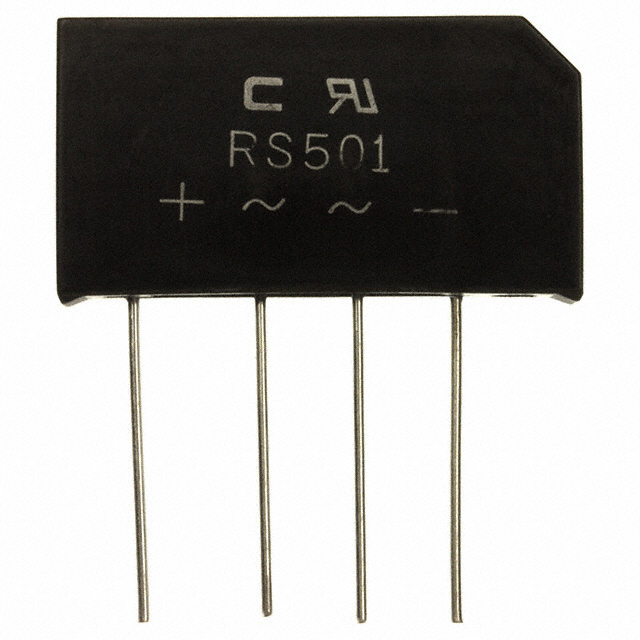

RS501-G
BRIDGE RECT 1PHASE 50V 5A RS5Manufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology RS501-G is a single-phase, standard bridge rectifier designed for efficient power conversion. This through-hole component, housed in an RS5 package, offers a reverse voltage rating of 50V and an average rectified forward current handling capability of 5A. Featuring a maximum forward voltage drop of 1V at 5A and a low reverse leakage current of 10µA at 50V, the RS501-G is suitable for demanding applications. Its operating temperature range of -55°C to 125°C (TJ) ensures reliability in various environments. This device is commonly utilized in power supply units, industrial controls, and automotive electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SIP, RS-5 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | RS5 |
| Voltage - Peak Reverse (Max) | 50 V |
| Current - Average Rectified (Io) | 5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
