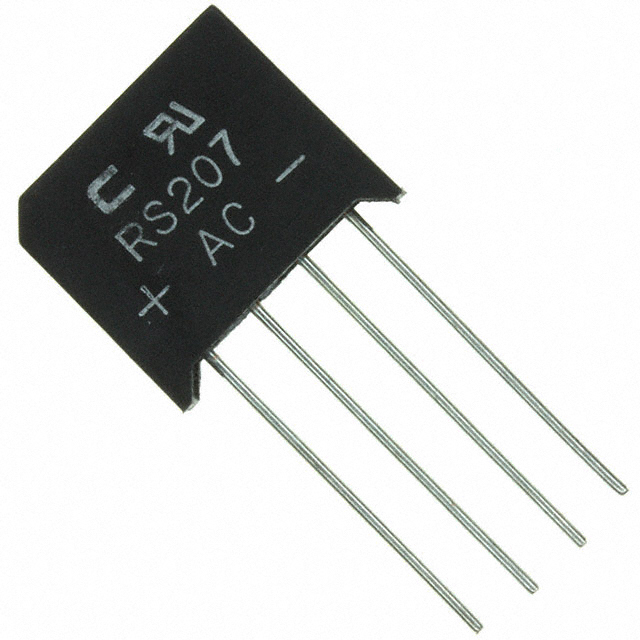

RS207-G
BRIDGE RECT 1PHASE 1KV 2A RS-2Manufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology RS207-G is a single-phase, standard bridge rectifier designed for robust power rectification applications. This through-hole component, housed in an RS-2 package, offers a peak reverse voltage rating of 1 kV and an average rectified forward current capability of 2 A. With a maximum forward voltage drop of 1.1 V at 2 A, it ensures efficient operation. The device exhibits a low reverse leakage current of 10 µA at 1000 V, contributing to overall circuit integrity. Operating across a wide temperature range of -55°C to 125°C (TJ), the RS207-G is suitable for demanding environments. This component finds application in power supplies, AC-DC converters, and various industrial equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SIP, RS-2 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | RS-2 |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
