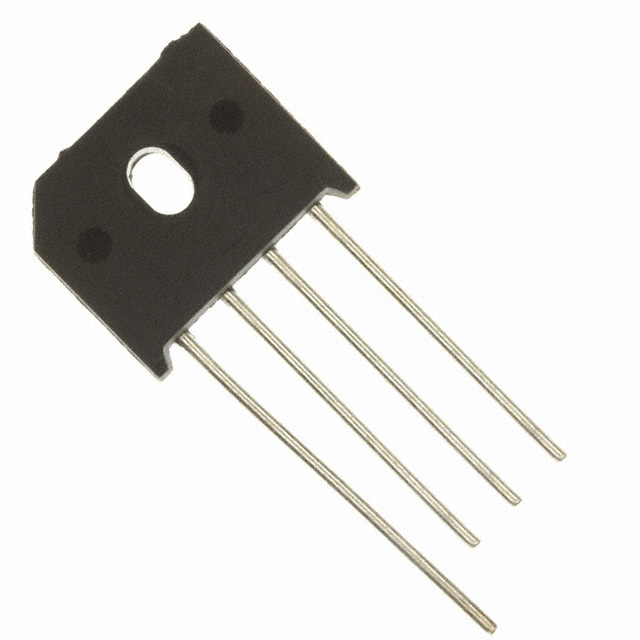

KBU3510-G
BRIDGE RECT 1PHASE 1KV 35A KBUManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology KBU3510-G is a single-phase bridge rectifier designed for high-current applications. This through-hole component features a standard silicon diode technology, offering a maximum reverse voltage of 1 kV and an average rectified output current of 35 A. The forward voltage drop is specified at a maximum of 1.1 V at 17.5 A, with a low reverse leakage current of 10 µA at 1000 V. Operating across a wide temperature range of -55°C to 150°C (TJ), it is housed in a 4-SIP, KBU package. This device is commonly utilized in power supply units, industrial motor controls, and power conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SIP, KBU |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | KBU |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
