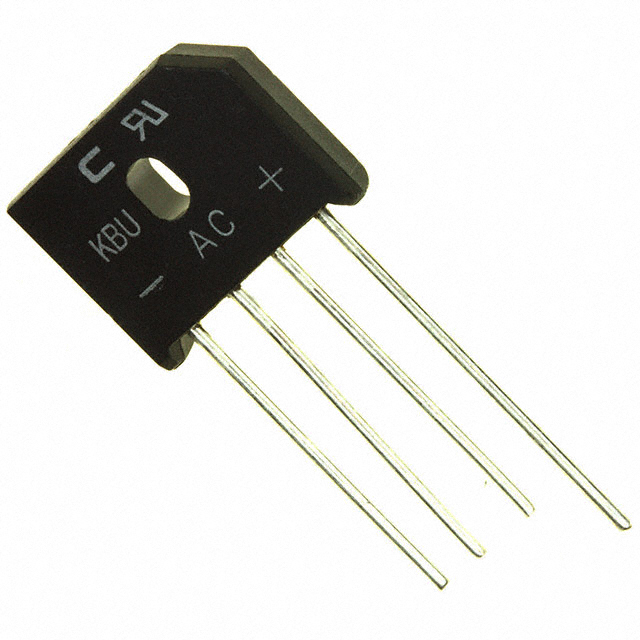

KBU3504-G
BRIDGE RECT 1PHASE 400V 35A KBUManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology KBU3504-G is a single-phase bridge rectifier designed for robust power applications. This through-hole component, housed in a 4-SIP KBU package, offers a peak reverse voltage of 400V and a continuous average rectified current capability of 35A. Featuring a standard recovery technology, it exhibits a maximum forward voltage (Vf) of 1.1V at 17.5A and a low reverse leakage current of 10µA at its rated reverse voltage. The operating temperature range extends from -55°C to 150°C. This device is well-suited for power supplies, automotive electronics, industrial control systems, and consumer electronics where reliable AC to DC conversion is critical. The component is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SIP, KBU |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | KBU |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
