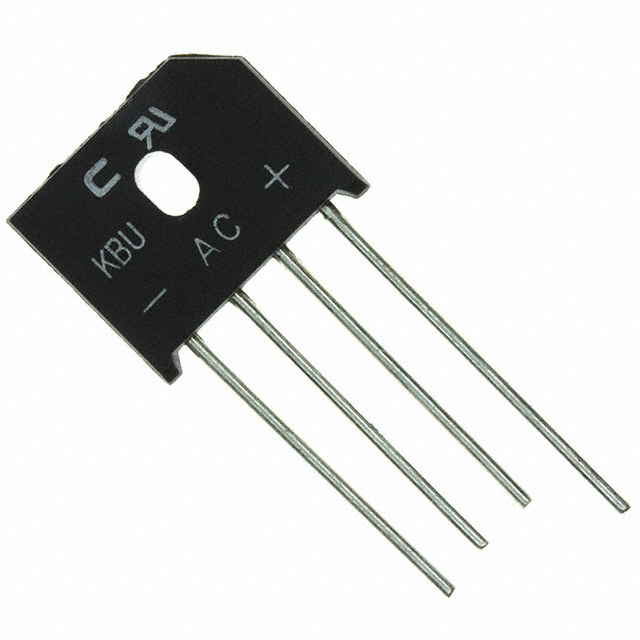

KBU2504-G
BRIDGE RECT 1PHASE 400V 3.6A KBUManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology KBU2504-G is a single-phase, standard bridge rectifier designed for through-hole mounting. This component features a maximum repetitive peak reverse voltage (Vrrm) of 400V and an average rectified forward current (Io) of 3.6A. The forward voltage drop (Vf) is rated at a maximum of 1.1V at 12.5A, with a low reverse leakage current of 10 µA at 400V. The device operates within a temperature range of -55°C to 150°C (TJ) and is supplied in a 4-SIP, KBU package. This rectifier is suitable for applications in power supplies, consumer electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SIP, KBU |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | KBU |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 3.6 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
