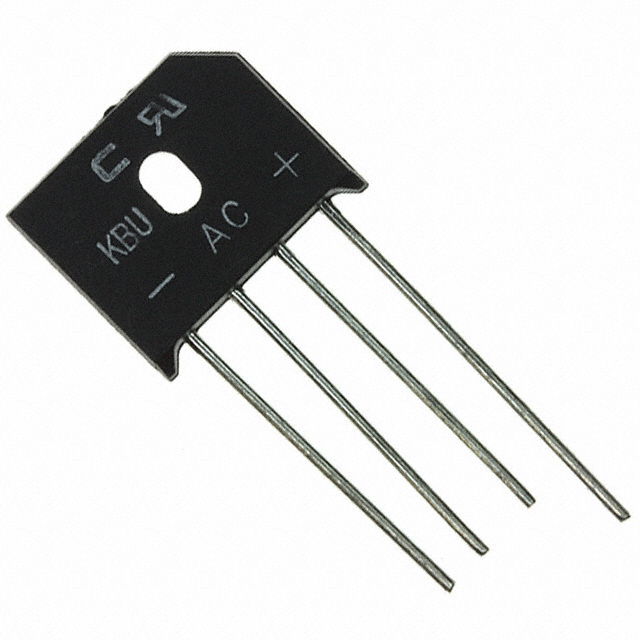

KBU25005-G
BRIDGE RECT 1PHASE 50V 3.6A KBUManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology KBU25005-G is a single-phase bridge rectifier designed for standard rectification applications. This through-hole component features a 4-SIP, KBU package, providing a robust solution for power management. With an average rectified forward current handling capability of 3.6 A and a peak reverse voltage rating of 50 V, it is suitable for demanding environments. The device exhibits a low reverse leakage current of 10 µA at 50 V and a maximum forward voltage drop of 1.1 V at 12.5 A. The operating temperature range spans from -55°C to 150°C (TJ). This component finds application in industrial power supplies, automotive electronics, and consumer goods requiring reliable AC to DC conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SIP, KBU |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | KBU |
| Voltage - Peak Reverse (Max) | 50 V |
| Current - Average Rectified (Io) | 3.6 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
