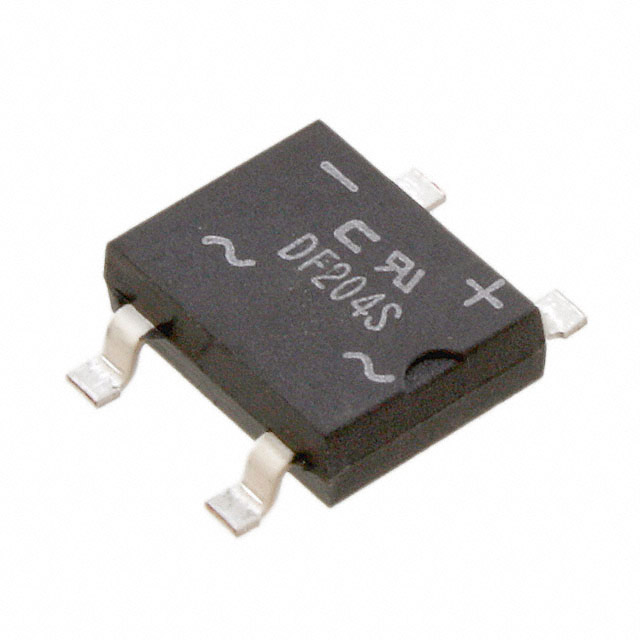

DF204ST-G
BRIDGE RECT 1PHASE 400V 2A DFSManufacturer: Comchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Comchip Technology DF204ST-G is a single-phase bridge rectifier designed for high-reliability applications. This DFS package component offers a 400V peak reverse voltage and a 2A average rectified current (Io). Featuring a standard technology, it exhibits a forward voltage (Vf) of 1.1V at 2A and a low reverse leakage current of 10µA at 400V. The surface mountable design with gull wing leads ensures efficient thermal performance and ease of integration into automated assembly processes. Operating across a wide temperature range of -55°C to 150°C (TJ), this rectifier is suitable for demanding environments found in power supplies, automotive electronics, and industrial control systems. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | DFS |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
