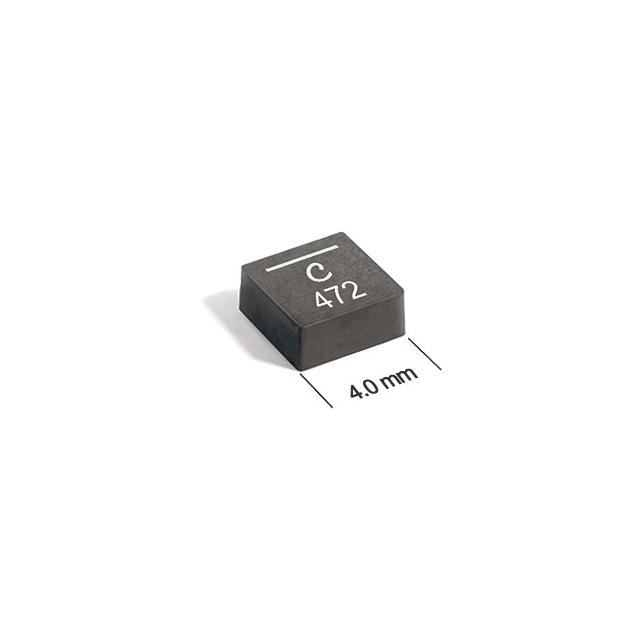

XFL4020-102MEC

FIXED IND 1UH 11A 11.9MOHM SM

Manufacturer: Coilcraft

Categories: Fixed Inductors

Quality Control: Learn More

1 µH Shielded Molded Inductor 11 A 11.9mOhm Max 1616 (4040 Metric)

Additional Information

Series: XFL4020RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Tolerance±20%
Features-
PackagingTape & Reel (TR)
Package / Case1616 (4040 Metric)
Size / Dimension0.157"" L x 0.157"" W (4.00mm x 4.00mm)
Mounting TypeSurface Mount
ShieldingShielded
TypeMolded
Operating Temperature-40°C ~ 125°C
DC Resistance (DCR)11.9mOhm Max
Q @ Freq-
Frequency - Self Resonant64MHz
RatingsAEC-Q200
Current - Saturation (Isat)5.4A
Material - CoreMetal Composite
Inductance Frequency - Test1 MHz
Supplier Device Package1616
Height - Seated (Max)0.083"" (2.10mm)
Inductance1 µH
Current Rating (Amps)11 A
