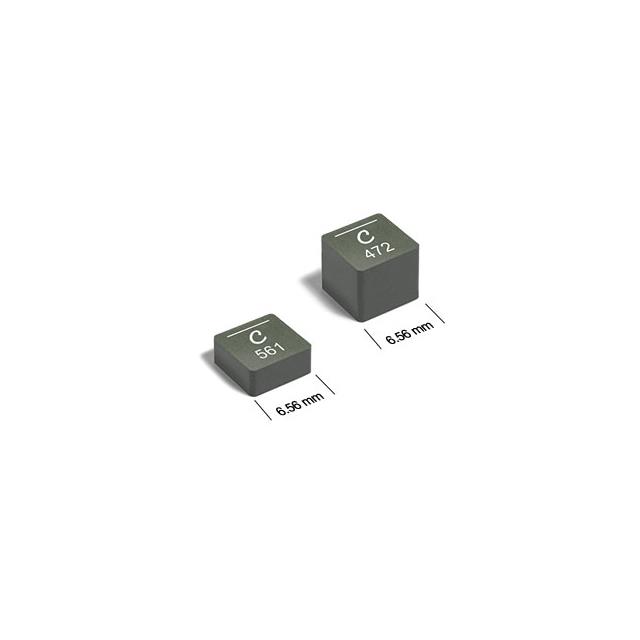

XAL6030-181MEC
FIXED IND 180NH 32A 1.75MOHM SMManufacturer: Coilcraft
Categories: Fixed Inductors
Quality Control: Learn More
180 nH Shielded Molded Inductor 32 A 1.75mOhm Nonstandard
Additional Information
Series: XAL60XXRoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.258"" L x 0.250"" W (6.56mm x 6.36mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1.75mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 141MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 39A |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Inductance | 180 nH |
| Current Rating (Amps) | 32 A |
