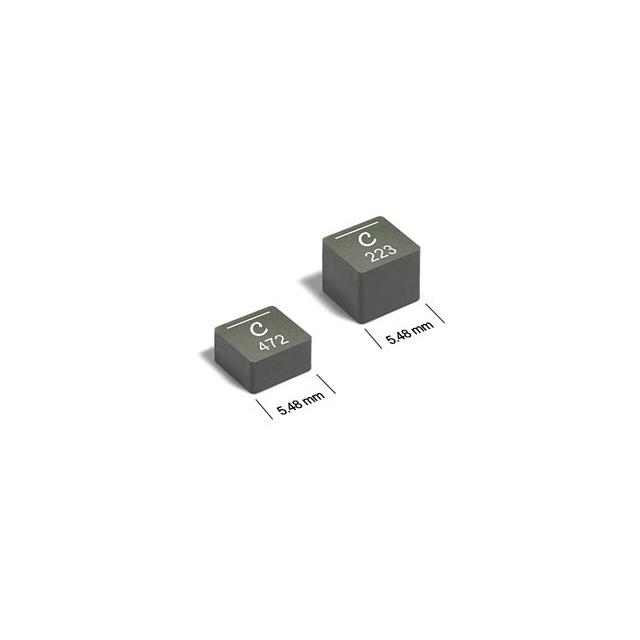

XAL5030-332MEC
FIXED IND 3.3UH 8.1A 23.3MOHM SMManufacturer: Coilcraft
Categories: Fixed Inductors
Quality Control: Learn More
3.3 µH Shielded Molded Inductor 8.1 A 23.3mOhm Max Nonstandard
Additional Information
Series: XAL50XXRoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.216"" L x 0.208"" W (5.48mm x 5.28mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 23.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 28MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 8.7A |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 8.1 A |
