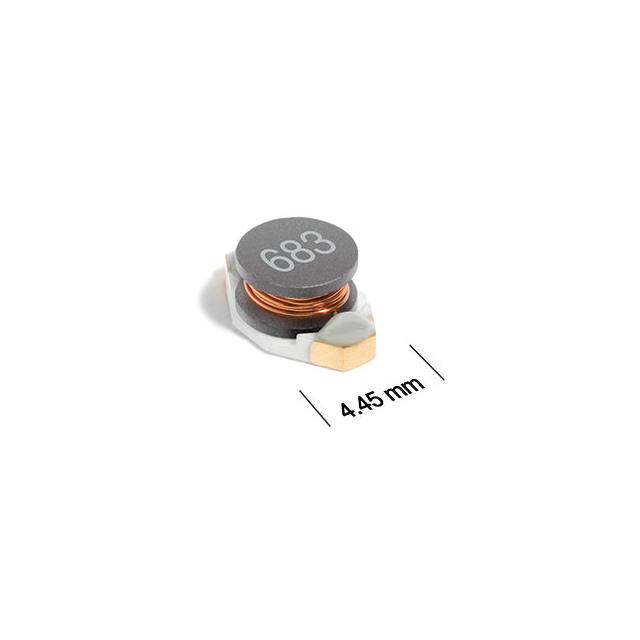

DO1608C-154MLC
FIXED IND 150UH 390MA 2OHM SMManufacturer: Coilcraft
Categories: Fixed Inductors
Quality Control: Learn More
150 µH Unshielded Wirewound Inductor 390 mA 2Ohm Max Nonstandard
Additional Information
Series: DO1608CRoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.260"" L x 0.175"" W (6.60mm x 4.45mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 2Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 270mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.115"" (2.92mm) |
| Inductance | 150 µH |
| Current Rating (Amps) | 390 mA |
