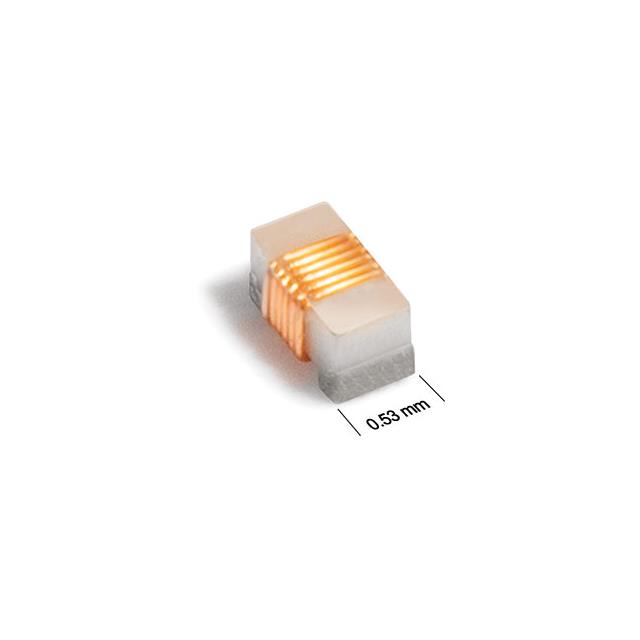

0302CS-10NXJRW
FIXED IND 10NH 620MA 140MOHM SMManufacturer: Coilcraft
Categories: Fixed Inductors
Quality Control: Learn More
10 nH Unshielded Inductor 620 mA 140mOhm Max Nonstandard
Additional Information
Series: 0302CSRoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.034"" L x 0.021"" W (0.86mm x 0.53mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | - |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | 58 @ 900MHz |
| Frequency - Self Resonant | 7.45GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Inductance | 10 nH |
| Current Rating (Amps) | 620 mA |
