NSE11DV57NCF220A
ROTARY ENCODER MECHANICAL 20PPRManufacturer: C&K
Categories: Encoders
Quality Control: Learn More

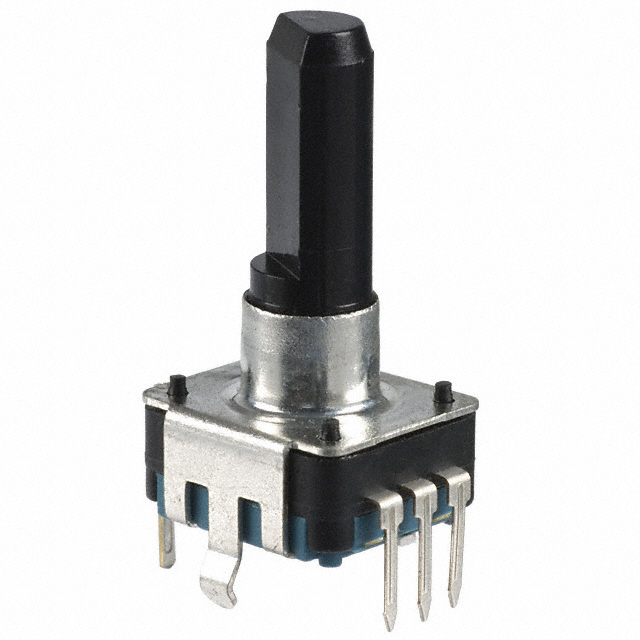

C&K NSE11 Series rotary encoder, part number NSE11DV57NCF220A. This mechanical encoder provides 20 pulses per revolution (PPR) with quadrature (incremental) output. It features a vertical mounting orientation and PCB through-hole termination. The actuator is a 6mm diameter flatted end, and the unit includes detents for tactile feedback. Designed for a rotational life of a minimum of 15,000 cycles, this encoder is suitable for applications in industrial automation, consumer electronics, and control interfaces where precise rotational position sensing is required.
Additional Information
Series: NSE11RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging:Download Free CAD Model:
Technical Details:
| Packaging | |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 15k |
| Programmable | Not Verified |
| Packaging |
Request a Quote
Clients Also Buy
NSE11DV57NCF215A
ROTARY ENCODER MECHANICAL 15PPR
ENCOS24D2S65R
ROTARY ENCODER OPTICAL 24PPR

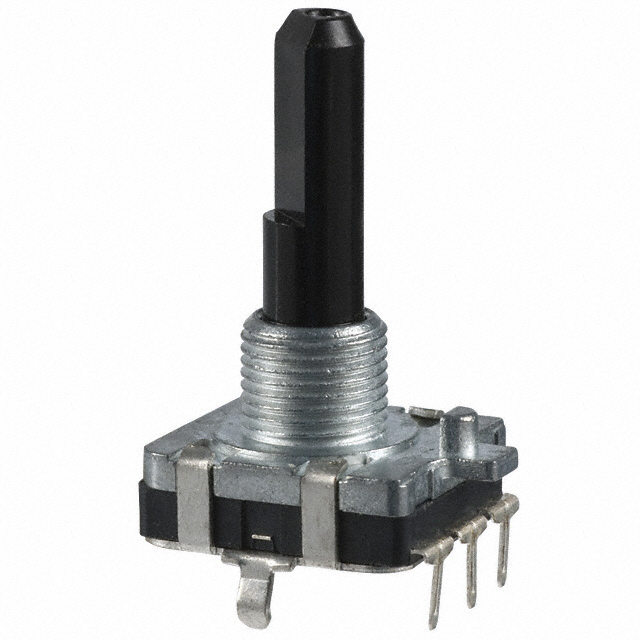

NSE16DV2431
