CLL801-0101A7-35AM1
LED CLL WARM WHT 3500K 0603Manufacturer: Citizen
Categories: LED White Lighting
Quality Control: Learn More
Citizen CLL Series LED, part number CLL801-0101A7-35AM1, offers warm white illumination with a Correlated Color Temperature (CCT) of 3500K and a typical Color Rendering Index (CRI) of 80. This surface-mount component, housed in a 0603 (1608 Metric) package, operates at a forward voltage of 3.2V and a test current of 20mA, producing a luminous flux of 6 lumens. The component delivers 94 lm/W efficiency and can handle a maximum current of 30mA. Its compact dimensions of 1.60mm x 0.80mm and a seated height of 1.00mm make it suitable for various applications, including general lighting, automotive interiors, and consumer electronics.
Additional Information
Series: CLLRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 0603 (1608 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.063"" L x 0.032"" W (1.60mm x 0.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Viewing Angle | - |
| Current - Max | 30mA |
| Supplier Device Package | 0603 |
| Lumens/Watt @ Current - Test | 94 lm/W |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| CCT (K) | 3500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 6lm (5lm ~ 8lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

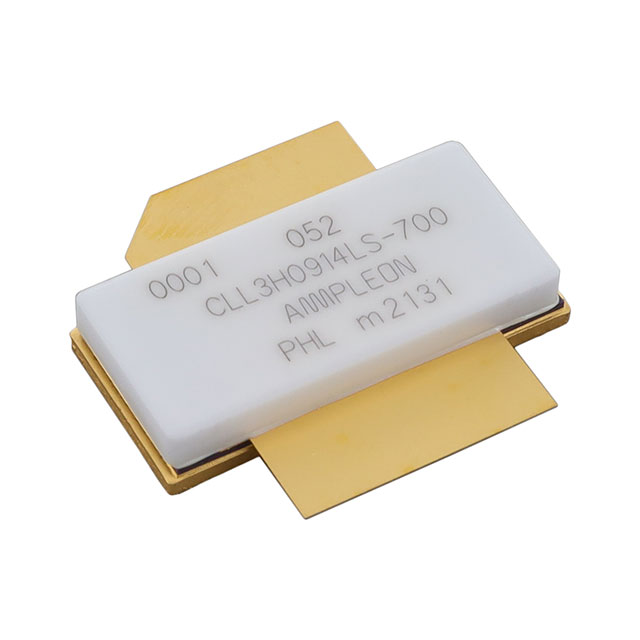

CLL3H0914LS-700U
