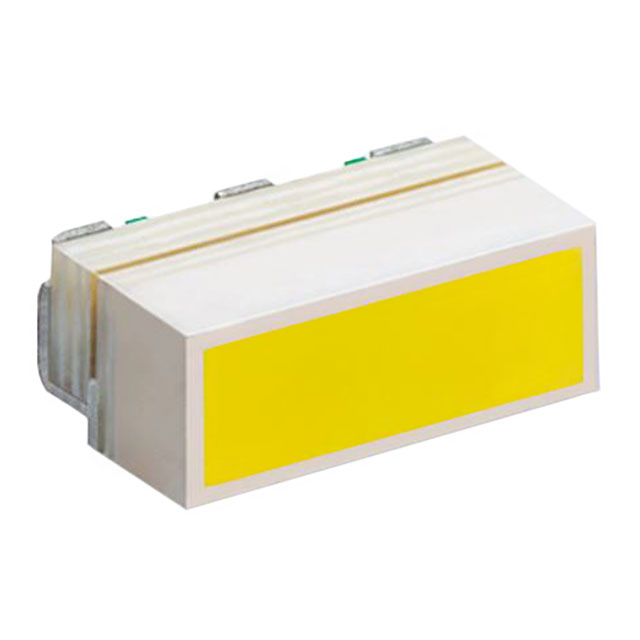

CLL130-0101C1-50AM1J1
LED COOL WHITE 5000K SMDManufacturer: Citizen
Categories: LED White Lighting
Quality Control: Learn More
The Citizen CLL130-0101C1-50AM1J1 is a cool white surface-mount LED with a Correlated Color Temperature (CCT) of 5000K. This component, housed in an 0806 (2016 Metric) package, operates with a typical forward voltage of 2.87V and a test current of 65mA, drawing a maximum of 85mA. It delivers a luminous flux of 30 lumens at the test current, achieving a luminous efficacy of 160 lm/W. The LED features a Color Rendering Index (CRI) of 80, ensuring accurate color representation. Its compact dimensions are 0.079" L x 0.063" W (2.00mm x 1.60mm), with a maximum seated height of 0.033" (0.85mm). This component is supplied on tape and reel (TR). It finds application in general illumination and display backlighting within the automotive and consumer electronics industries.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0806 (2016 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.079"" L x 0.063"" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.87V |
| Current - Test | 65mA |
| Viewing Angle | - |
| Current - Max | 85mA |
| Lumens/Watt @ Current - Test | 160 lm/W |
| Height - Seated (Max) | 0.033"" (0.85mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 30lm (Typ) |
| Flux @ 85°C, Current - Test | - |
