CLU550-3626C1-503M2G2-B24
LED COB CLU550 COOL WHT SQ 5000KManufacturer: Citizen
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Citizen CLU550 series Chip On Board (COB) LED module, part number CLU550-3626C1-503M2G2-B24. This cool white LED offers a 5000K correlated color temperature within a 3-step MacAdam ellipse for consistent color. Featuring an 80 CRI, this module delivers 33800 lumens typical luminous flux at 2.34A test current, achieving 139 lumens per watt. The square light-emitting surface measures 32.80mm in diameter, housed within a 38.00mm x 38.00mm footprint with a height of 1.40mm. Maximum current is rated at 4.68A, with a typical forward voltage of 103.9V. This component is suitable for general lighting applications. Packaged in trays.
Additional Information
Series: CLU550RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 38.00mm L x 38.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 103.9V |
| Height | 1.40mm |
| Current - Test | 2.34A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 4.68A |
| Lumens/Watt @ Current - Test | 139 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 32.80mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 33800lm (Typ) |
Request a Quote
Clients Also Buy

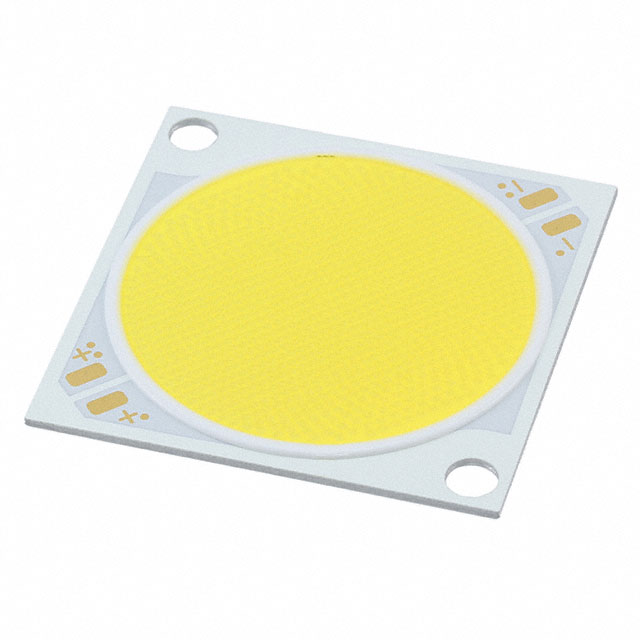

CLU550-3626C1-303M2G2-B24
