CLU058-1825C4-30AL7K3
LED COB CLU058 WM WHT SQ 3000KManufacturer: Citizen
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

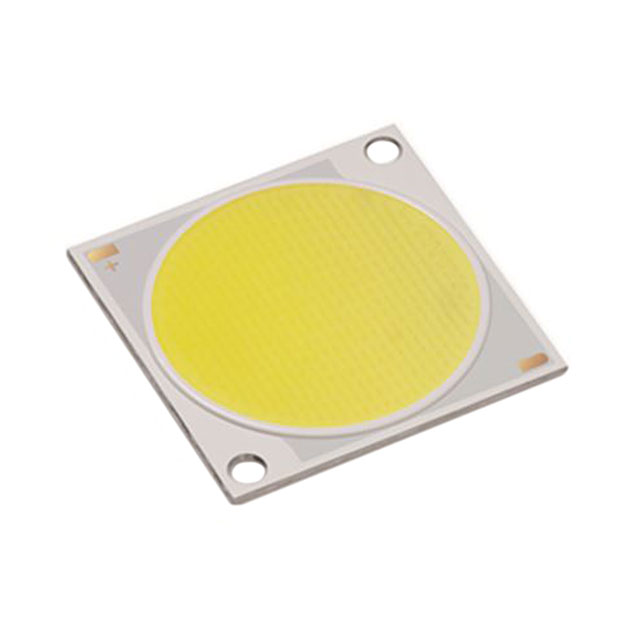

The Citizen CLU058-1825C4-30AL7K3 is a Chip On Board (COB) LED module from the CLU058 series. This warm white LED features a square configuration with a Correlated Color Temperature (CCT) of 3000K, specified within a 3-Step MacAdam Ellipse for tight color consistency. It delivers a typical luminous flux of 18382 lumens at a test current of 2.25A and a forward voltage of 52V. The module achieves 157 lumens per watt at this test condition and a maximum drive current of 5.75A. With a Light Emitting Surface (LES) diameter of 32.80mm, the component has a height of 1.40mm and dimensions of 38.00mm by 38.00mm. The Color Rendering Index (CRI) is 70. This component is suitable for high-output lighting applications across various industries, including architectural lighting, industrial lighting, and automotive lighting. The product is supplied in tray packaging.
Additional Information
Series: CLU058RoHS Status: ROHS3 CompliantManufacturer Lead Time: 70 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 38.00mm L x 38.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 52V |
| Height | 1.40mm |
| Current - Test | 2.25A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 5.75A |
| Lumens/Watt @ Current - Test | 157 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 32.80mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 18382lm (Typ) |
