CLU046-1812C1-403H5G3
LED COB NEUT WHT SQUARE 4000KManufacturer: Citizen
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

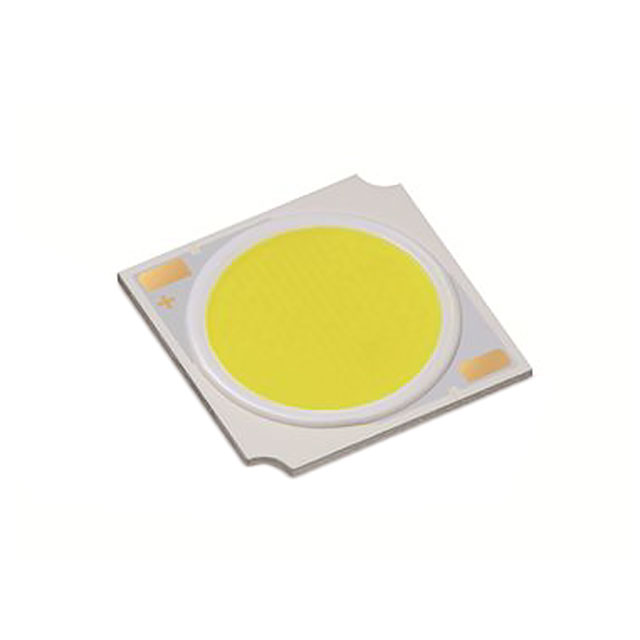

Citizen CLU046-1812C1-403H5G3 is a Chip On Board (COB) LED module designed for high-performance lighting applications. This neutral white LED emits light with a correlated color temperature (CCT) of 4000K, specified within a 3-Step MacAdam Ellipse for excellent color uniformity. Featuring a high Color Rendering Index (CRI) of 90, it delivers accurate color representation. The square light-emitting surface (LES) has a diameter of 22.00mm, and the module itself measures 28.00mm x 28.00mm with a height of 1.40mm. At a test current of 1.08A and 85°C, it achieves an efficacy of 117 lm/W and produces a typical luminous flux of 6596lm. The forward voltage (Vf) is typically 52V, with a maximum continuous current rating of 2.76A. This component is commonly utilized in architectural lighting, retail illumination, and industrial lighting solutions where precise color and high lumen output are critical. The module is supplied in trays.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 52V |
| Height | 1.40mm |
| Current - Test | 1.08A |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 2.76A |
| Lumens/Watt @ Current - Test | 117 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 6596lm (Typ) |
