CLU024-1204B8-42GV1F6
LED COB CLU024 WHITE SQUAREManufacturer: Citizen
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

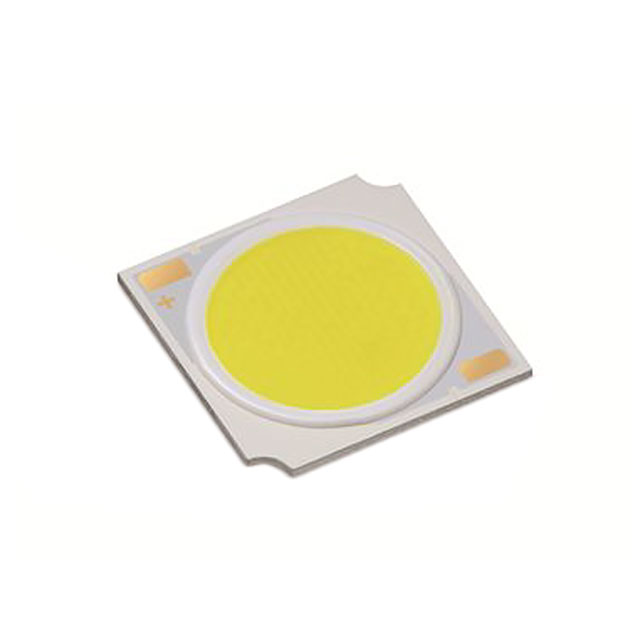

The Citizen CLU024 series, part number CLU024-1204B8-42GV1F6, is a Chip On Board (COB) LED module featuring a square light-emitting surface (LES) with a 9.80mm diameter. This component operates at a typical forward voltage of 35.7V and supports a maximum current of 720mA, with a test current specified at 360mA. At the test current, it achieves an efficacy of 103 lm/W, delivering a typical luminous flux of 1329 lumens at 25°C. The CLU024-1204B8-42GV1F6 boasts a high Color Rendering Index (CRI) of 94 (typical), making it suitable for applications demanding accurate color representation. Its dimensions are 13.50mm in length and width, with a height of 1.40mm. This COB LED is typically utilized in high-performance lighting solutions across various industries requiring superior illumination quality and efficiency. It is supplied in tray packaging.
Additional Information
Series: CLU024RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | - |
| Wavelength | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35.7V |
| Height | 1.40mm |
| Current - Test | 360mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 720mA |
| Lumens/Watt @ Current - Test | 103 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | 94 (Typ) |
| Light Emitting Surface (LES) | 9.80mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1329lm (Typ) |
