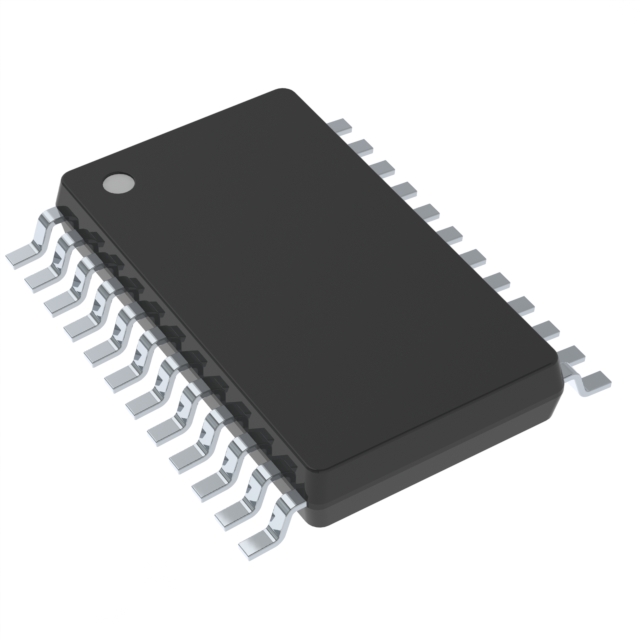

CS5460C-ISZ
IC PWR/ENERGY 1PH BIDIR 24SSOPManufacturer: Cirrus Logic Inc.
Categories: Sensor and Detector Interfaces
Quality Control: Learn More
The Cirrus Logic CS5460C-ISZ is a highly accurate, low-cost, single-phase bidirectional power and energy measurement integrated circuit. This component, packaged in a 24-SSOP, is designed for direct connection to the power line for voltage and current sensing. Its advanced architecture enables precise measurement of active and reactive energy, voltage, current, and power factors. The CS5460C-ISZ features a programmable gain amplifier, a second-order delta-sigma modulator, and a digital signal processor for comprehensive power monitoring. It operates with a typical supply current of 2.9 mA and is suitable for surface mount applications. This device finds extensive use in smart metering, energy monitoring systems, and power quality analysis across residential, commercial, and industrial sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SSOP (0.209"", 5.30mm Width) |
| Output Type | Voltage |
| Mounting Type | Surface Mount |
| Type | Power Management |
| Operating Temperature | -40°C ~ 85°C |
| Input Type | Voltage |
| Supplier Device Package | 24-SSOP |
| Current - Supply | 2.9 mA |
| Programmable | Not Verified |
Request a Quote
